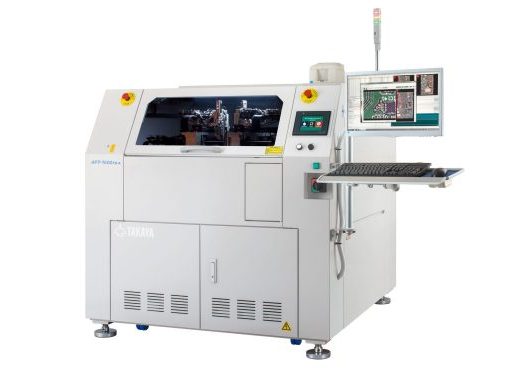

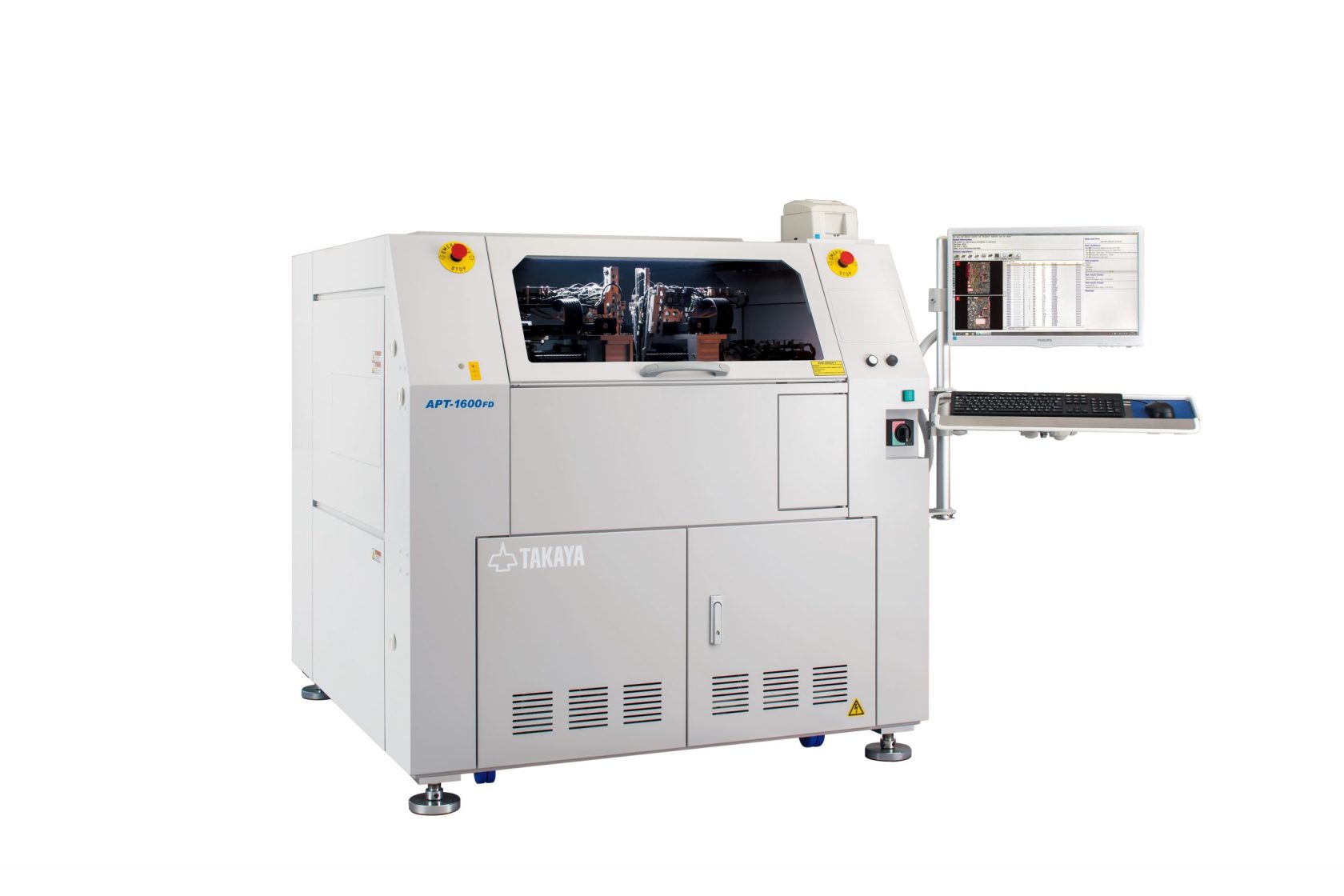

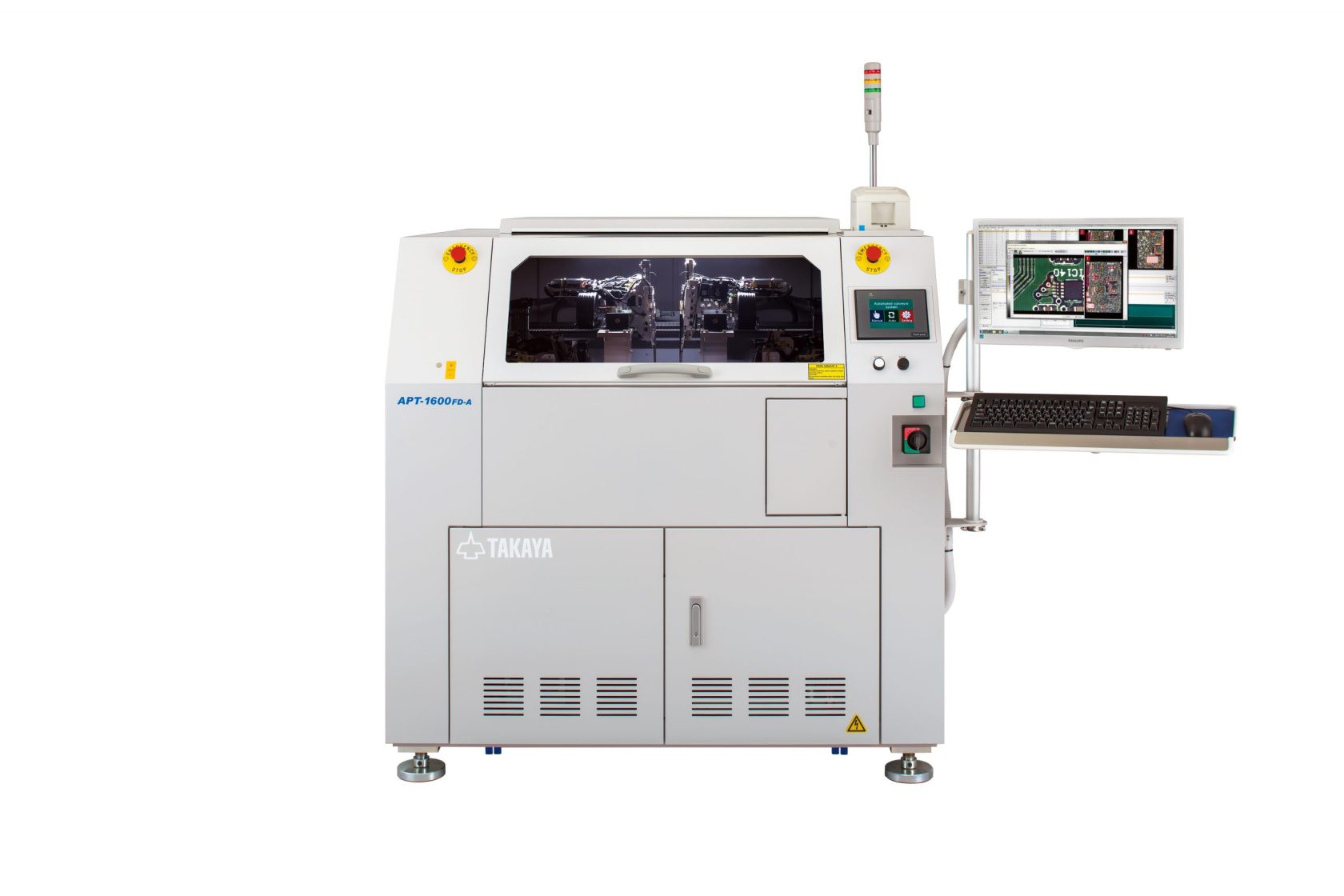

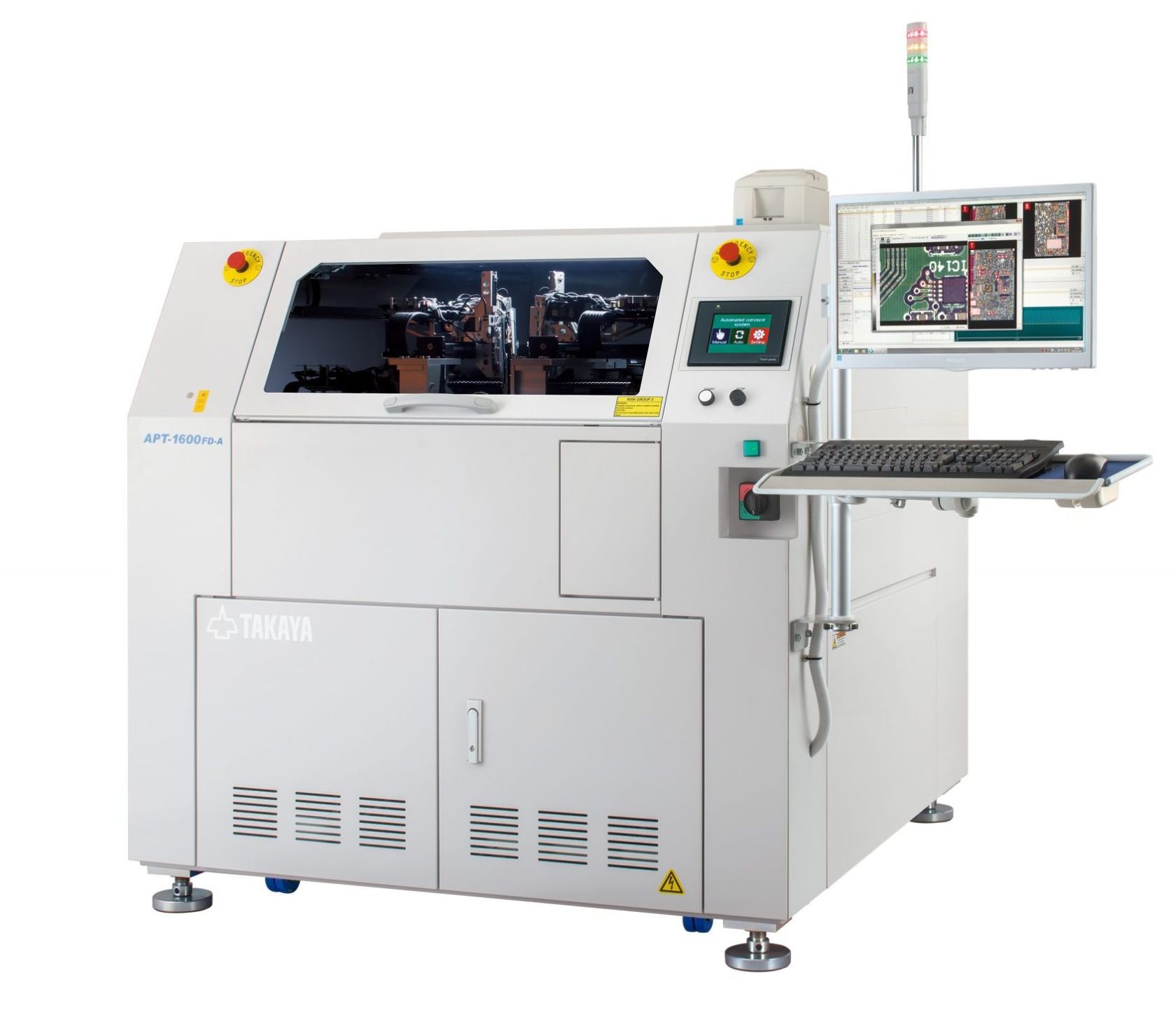

APT 1600FD

The APT-1600FD Series is a dual-sided flying probe test system which deploys the flying probes to both sides of a printed circuit board. Owing to the simultaneous dual-sided probing contact, the APT-1600FD Series can contribute to a marked increase in test coverage with shortest amount of test time

The APT-1600FD Series has world-class test speed and positioning accuracy, and is equipped with laser height measurement system, LED test sensors and a wealth of extraordinary test functionalities that significantly expand the application possibilities of flying probe tester.


Our solution Electrical and functional testing

Main features and benefits of the device

  • PCB size: 540 x 483 mm
  • 6 top side probes, 4 bottom side probes
  • Contacting of pads from 60um
  • Inline and offline platforms
  • Measurement of R, L, C with voltage < 0,3V
  • Frequency measurements, generating of logical signals, functional tests
  • CCD HD camera for optical tests
  • LED sensor for measurements of intesity and colours of LED
  • Measurements of PCB warpage
